Compact Performance

Desktop Cell & Battery
Testing Systems

Maximize laboratory capabilities without sacrificing floor space. Our desktop units pack the full power of Maccor’s Series 4000 hardware into a compact, turn-key footprint.

±30 nA Accuracy 1 to 16 Channels Multi-Range Current Ready to Ship
Download Brochure ↓
ACCURATE HARDWARE

Research-Grade Accuracy in a Desktop Form Factor.

Maccor desktop testers are engineered for applications where space is limited but data integrity is non-negotiable. Whether performing materials research or quality control, these systems utilize the same industry-standard MacTest32 software as our high-power cabinets.

±30 ηABottom Range Accuracy
2, 5, or 10 msMinimum Step Time
1, 2, 3, or 4Current Ranges

Primary Applications

  • Materials Research — Precision electrode analysis
  • Medical Devices — Critical reliability testing
  • Portable Electronics — Consumer cell validation
  • Quality Control — Incoming cell inspection
PRODUCT MODELS

Choose Your Desktop Tester

Configurations to match your channel count, current range, and application requirements.

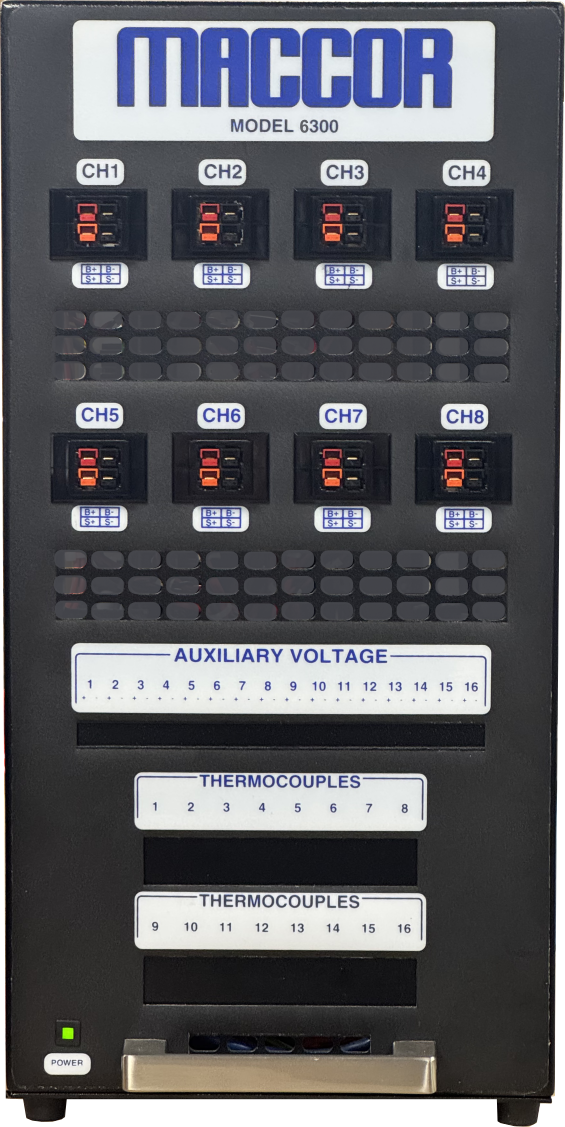

New Maccor Series 6300 Desktop Battery Tester — 8-channel double-wide cabinet
Series 6300

8-Channel Workhorse

The Series 6300 is the high-speed variant of the Series 4300, the trusted choice of scientists and researchers worldwide. Featuring unlimited waveform steps, 500 µs minimum step times, and 20 kHz data sampling, the Series 6300 delivers the performance and precision your most demanding applications require.

8 Channels 120A Max 1,200W Max 1 or 4 Ranges

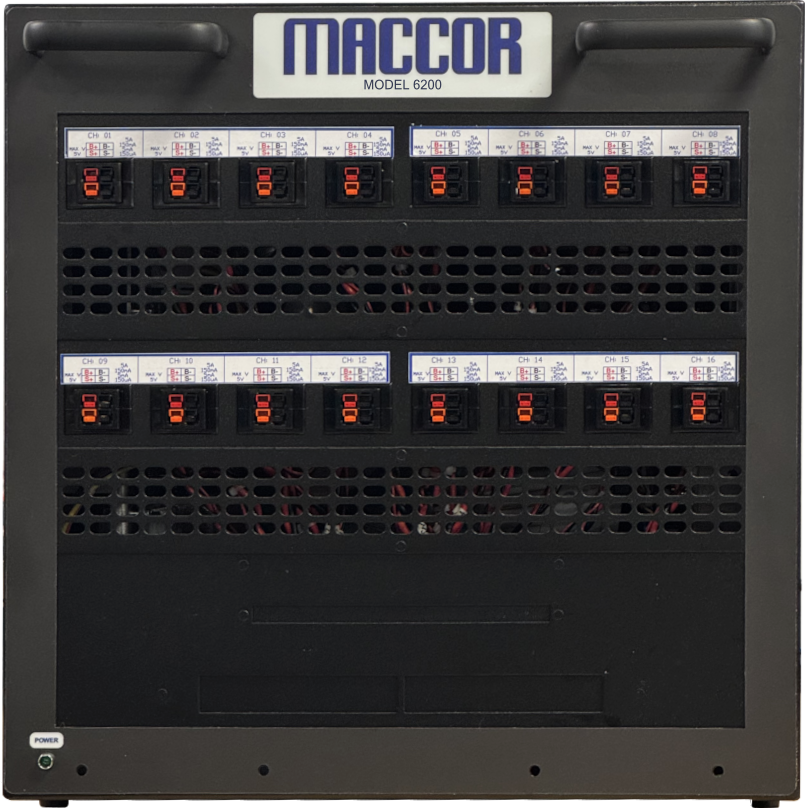

New Maccor Series 6200 Desktop Battery Tester — 16-channel double-wide cabinet
Series 6200

16-Channel Full Feature Tester

The Series 6200 combines proven Series 4200 capabilities with Maccor’s new high-speed testing platform. It provides 16 channels at up to 240 A, with CAN, SMBus, auxiliary voltage, temperature, and pressure options for demanding test applications.

16 Channels 240A Max 2,400W Max 20 kHz AMLP

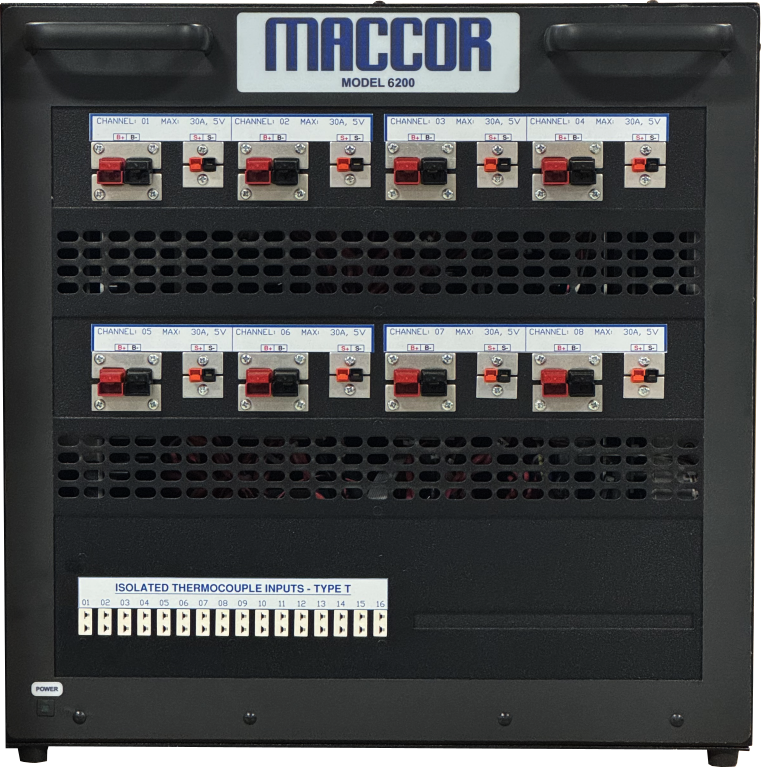

New Maccor Series 6200H Desktop Battery Tester — 8-channel double-wide cabinet
Series 6200H

8-Channel High-Power

The Series 6200H pairs Series 4200H hardware reliability with a high-speed testing platform. This 8-channel system uses high-current H power modules to deliver up to 25 A per channel across three selectable ranges, alongside full CAN, SMBus, auxiliary voltage, temperature, and pressure inputs for precision, high-current testing.

8 Channels 200A Max 2,400W Max 20 kHz AMLP

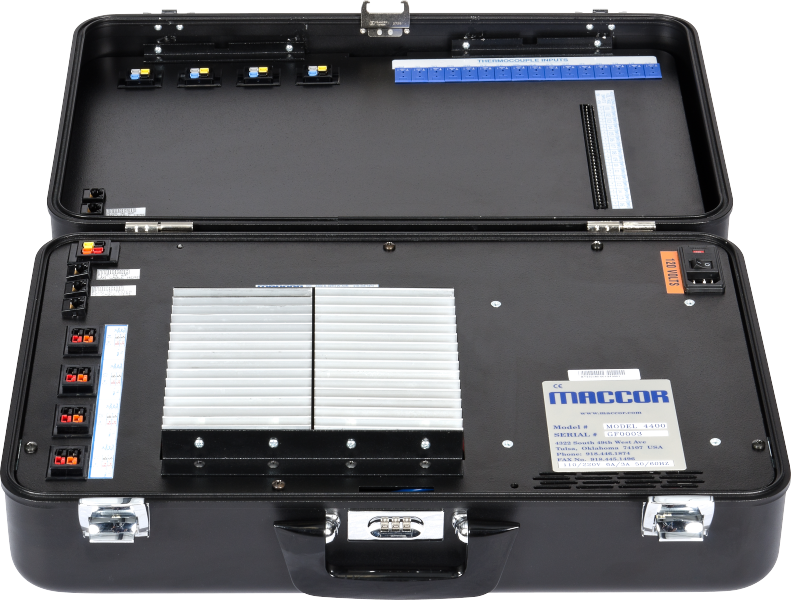

Maccor Series 4400 Desktop Battery Tester — compact single-wide cabinet
Series 4400

High-Precision Portable

The most accurate desktop configuration — four-range channels reaching ±30 nA on the bottom range, ideal for coin cells, research electrodes, and precision R&D work.

1–4 Channels 5A Max 200W Max 4 Current Ranges 5ms Min Step

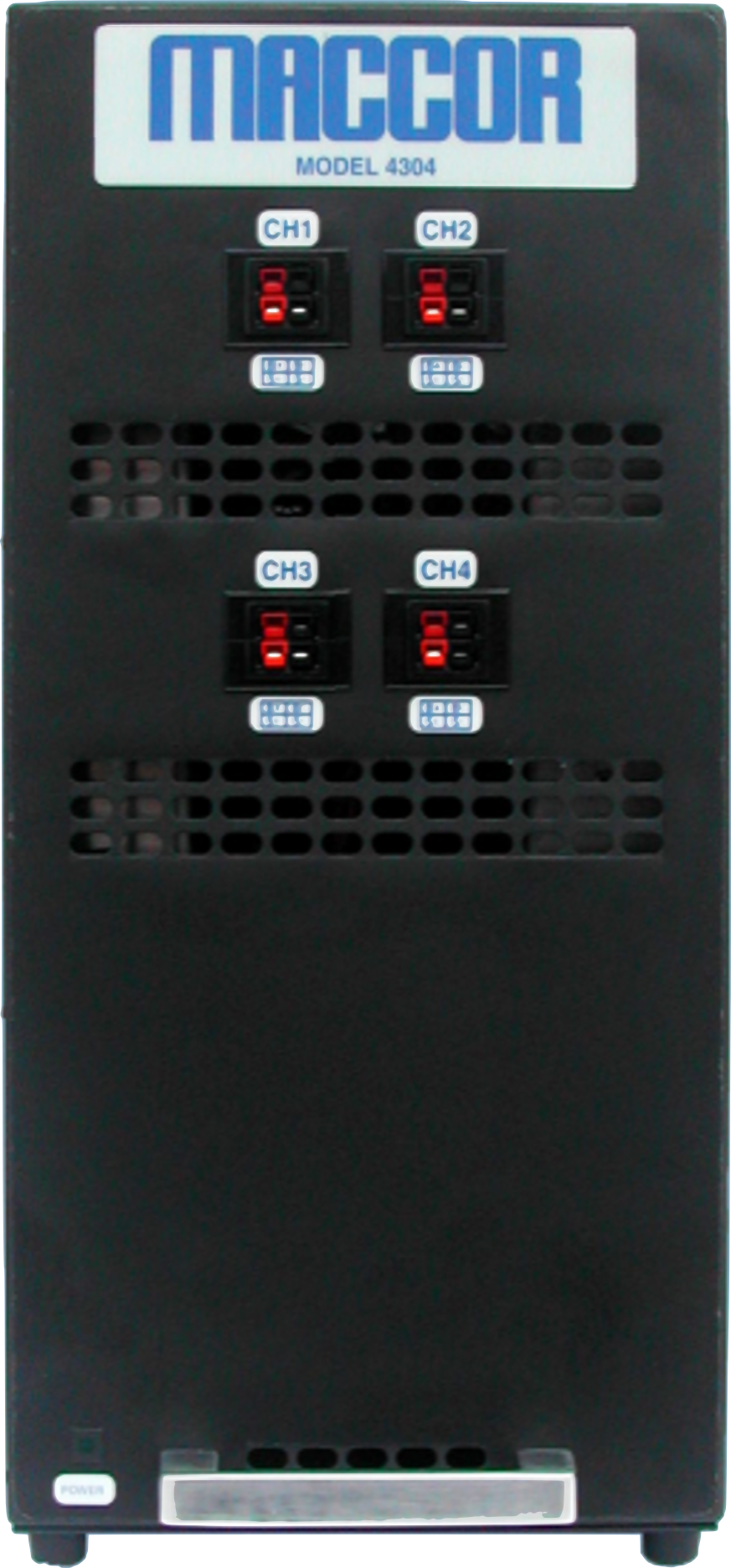

Maccor Series 4304 Desktop Battery Tester — high-current compact unit
Series 4304

Entry-Level Compact

Up to 60A in a desktop form factor — bridging the gap between low-current cell research and higher-power module testing without requiring a full rack footprint.

1–4 Channels 60A Max 600W Max 1 or 4 Ranges 2/5/10ms Step
Maccor Series 4300 Desktop Battery Tester — 8-channel double-wide cabinet
Series 4300

The Standard Desktop

The most versatile desktop configuration — eight channels at up to 120A with the full options suite including CAN, SMBus, auxiliary voltage, temperature, and pressure inputs.

1–8 Channels 120A Max 1,200W Max 1 or 4 Ranges Full Options Suite

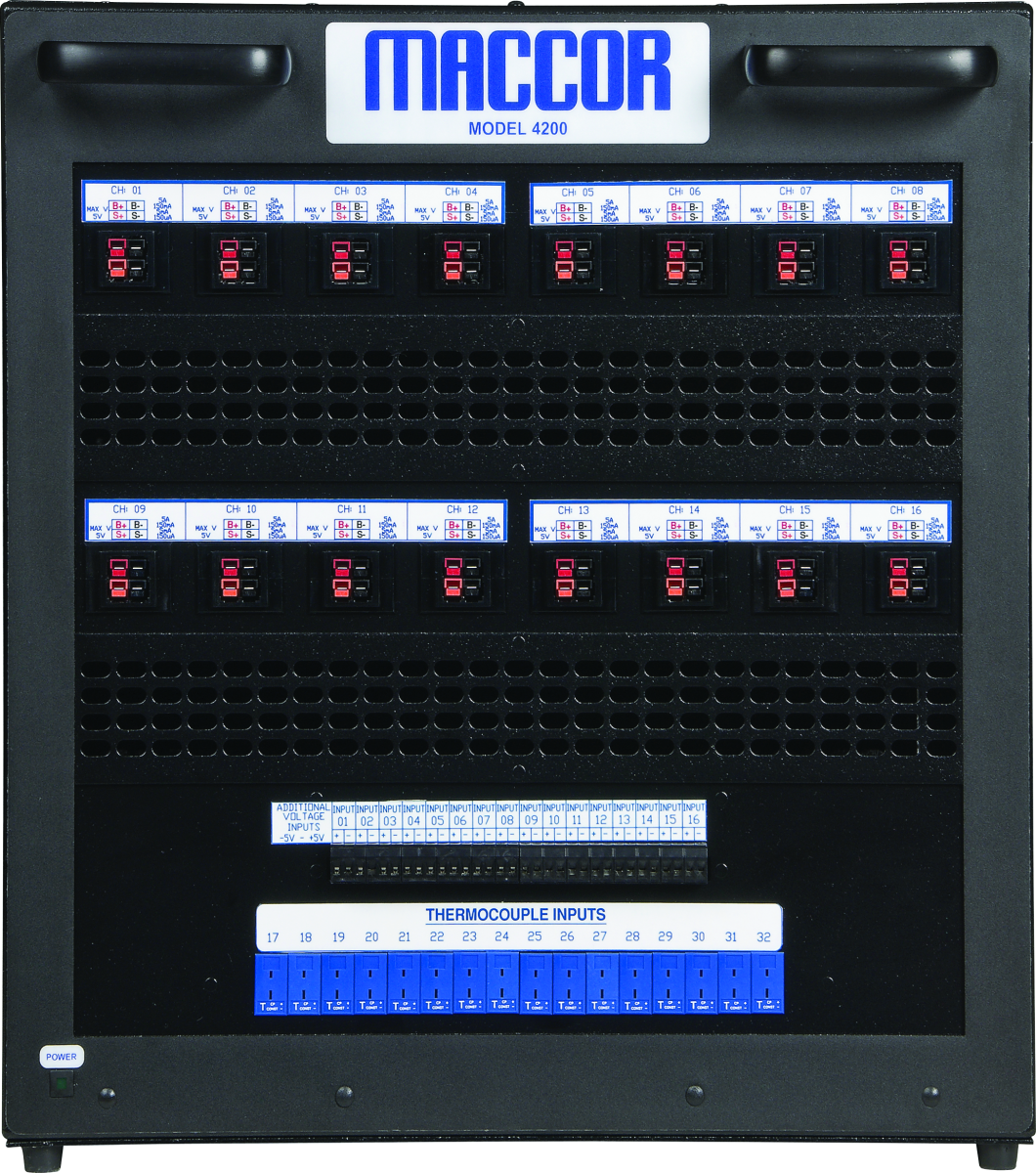

Maccor Series 4200 Desktop Battery Tester — 16-channel high-throughput benchtop unit
Series 4200

16-Channel Throughput Leader

Maximum channel density in a desktop enclosure — 16 channels at up to 240A total. The go-to for QC screening, high-throughput R&D, and multi-cell formation applications.

1–16 Channels 240A Max 2,400W Max 1 or 4 Ranges Full Options Suite

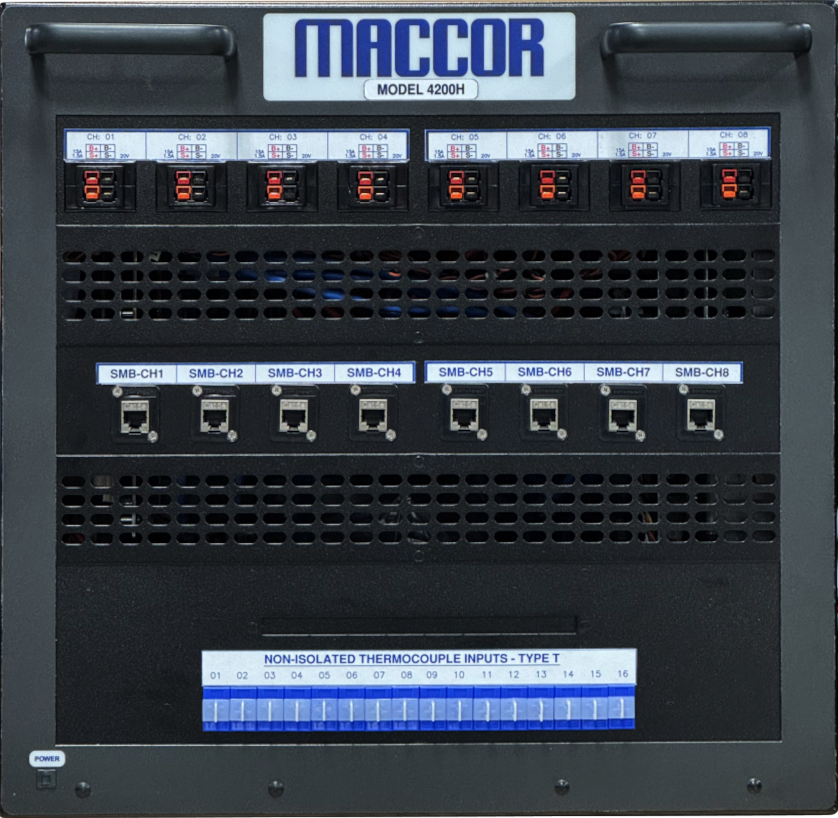

Maccor Series 4200H Desktop Battery Tester — high-voltage compact tester
Series 4200H

High-Power Configuration

Eight-channel system optimized for higher-voltage module and pack testing. 2 or 3 current ranges with 200A capacity, full options suite — built for demanding EV component work.

1–8 Channels 200A Max 2,400W Max 2 or 3 Ranges High-Voltage Ready
COMPARE MODELS

Technical Specifications

Specification 4400 4304 4300 / 6300 4200 / 6200 4200H / 6200H
Max Channels448168
Max Current (A)2060120240200
Max Power (W)2006001,2002,4002,400
Current Ranges41 or 41 or 41 or 42 or 3

Ready to Start Testing?

Contact our Tulsa-based engineering team to configure a desktop system tailored to your specific voltage and current requirements.
