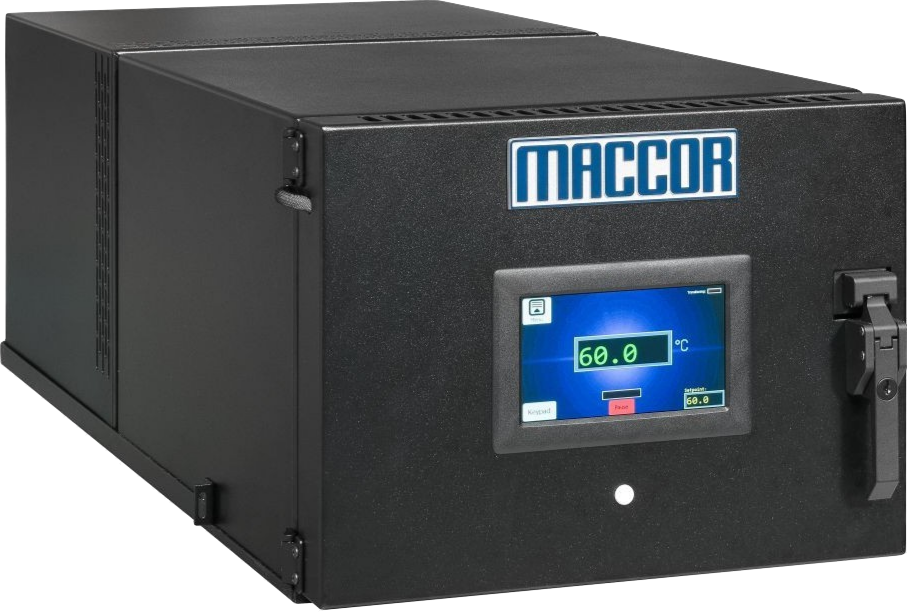

A compact heat/cool chamber with roughly 1 ft³ of workable area that plugs straight into your Maccor test system. Set chamber temperature as a step in your test procedure, run up to 32 addressable chambers from one PC, and stack up to four in a standard 19″ rack.
There is no separate chamber software to learn or sync. Automatic Temperature Control lets you set the chamber temperature directly from Maccor's test system software as a step in the test procedure — so thermal set points live right alongside your charge, discharge, and rest steps.
Addressable chamber controllers let a single Maccor test system integrate up to 32 chambers, making it simple to scale temperature testing across a large channel count without adding controllers or PCs.
Use the chamber as a standalone benchtop unit, or mount up to four into a single standard 19″ rack cabinet for high-density temperature testing without expanding your lab footprint.
Approximately 1 ft³ of workable area in a compact 12.25″ (7U) high enclosure with a non-conducting powder-coated interior. Heat/cool operation from +10°C to +100°C at ±0.5°C.

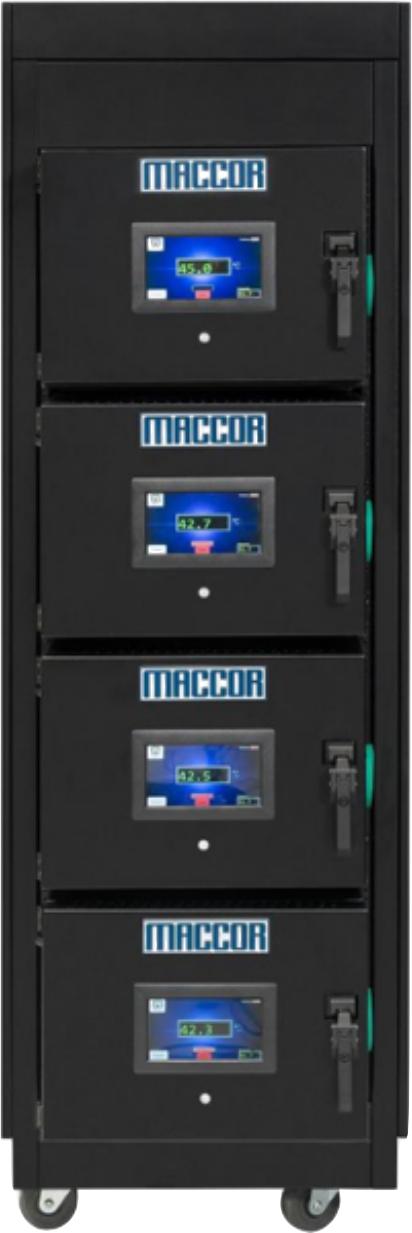

The 7U chassis is only 12.25″ tall, so up to four chambers install into a single optional 19″ rack cabinet — a compact way to scale temperature testing across many channels.

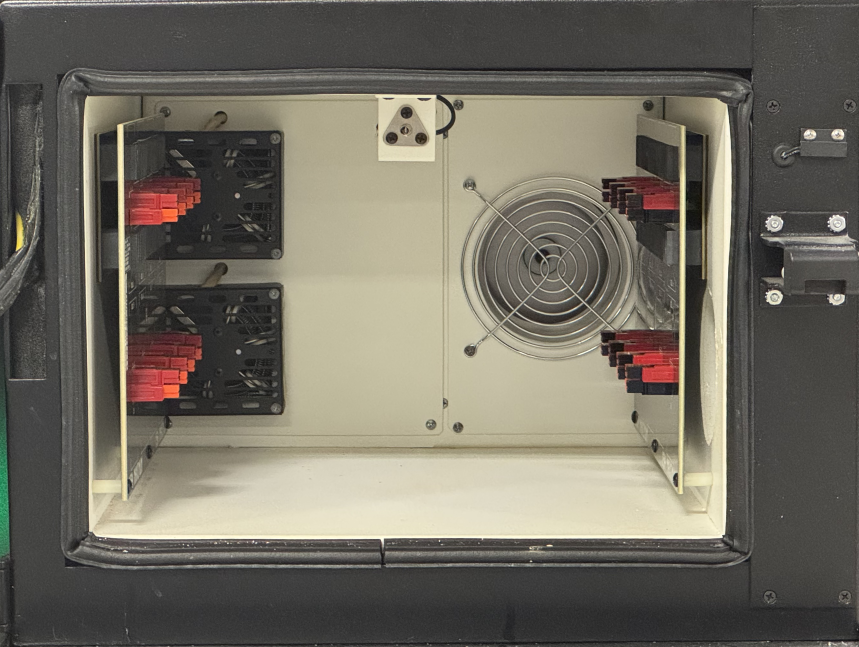

A standard Maccor interface can optionally be added inside the chamber, bringing familiar Maccor cell connections right to your samples at temperature and keeping wiring clean and consistent with the rest of your test system.
With roughly a cubic foot of workable space and a heat/cool configuration spanning +10°C to +100°C, the chamber handles everyday temperature-dependent testing while staying small enough for a benchtop. Tight ±0.5°C uniformity and accuracy keep conditions consistent across the work area.
When you need more capacity, the low 7U profile lets you rack up to four chambers together — all still driven from the same Maccor test system your team already knows.
| Specification | Value |
|---|---|
| Workable Area | Approximately 1 ft³ |
| Configuration | Heat / Cool |
| Cooling / Heating Power | 250 Watts (850 BTU/Hour) |
| Temperature Range (Heat/Cool) | +10°C to +100°C |
| Temperature Uniformity | ±0.5°C |
| Temperature Accuracy | ±0.5°C |
| AC Input | 220 VAC / 1ɸ / 15 Amps |
| Unit Dimensions | 18.5″ Wide × 30″ Deep × 12.25″ High |
| Rack Height | 7U — fits standard 19″ industrial rack cabinet |
| Chambers per Rack | Up to 4 |
| Chambers per Test System | Up to 32 (addressable controllers) |
| Interior Finish | Non-conducting powder coat |
| Optional | 19″ rack cabinet · Internal standard Maccor interface |
Contact our Tulsa-based engineering team to configure a temperature chamber for your test system and discuss rack and internal-interface options for your application.
